Champion 3000 Watt Inverter Generator - The Atom Fusion

SKU: 93001i-UK EAN: 5060423981657
1 review

Find a store near you
Or buy online from our approved partners:
Bimson Power LogoPowerland Logo

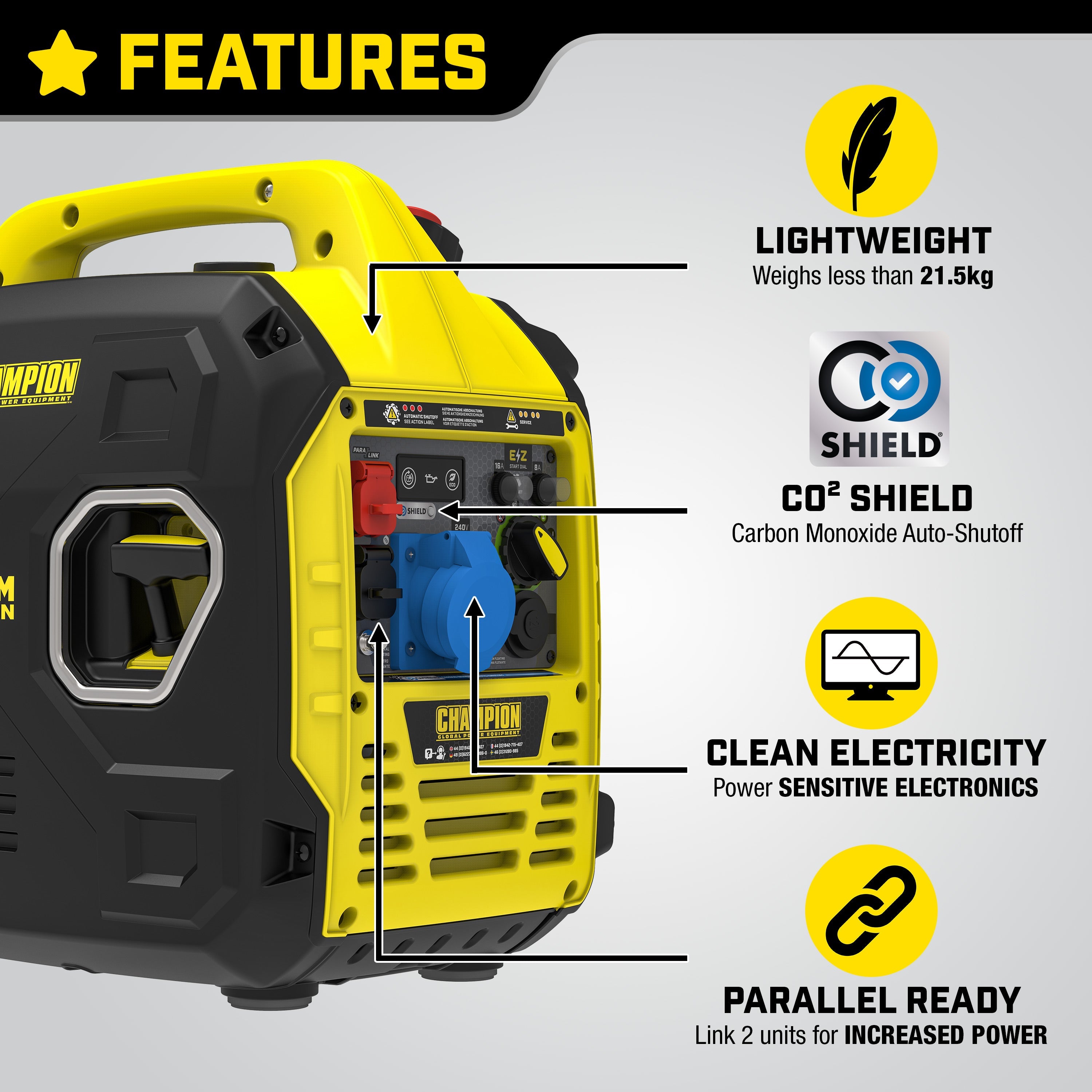

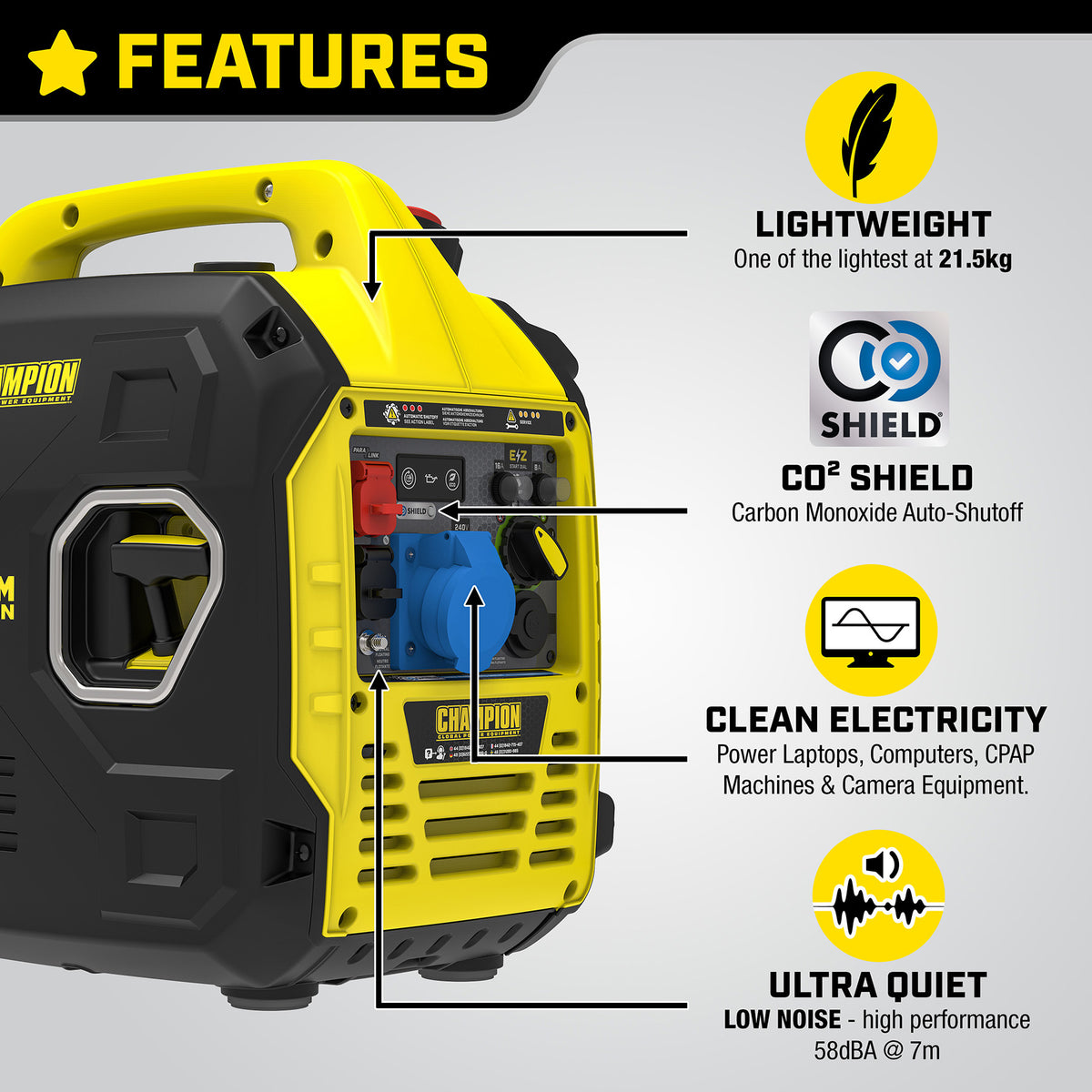

Features

  • SUPER LIGHTWEIGHT - Weighs LESS THAN 22kg
  • CLEAN ELECTRICITY - Power SENSITIVE ELECTRONICS
  • ULTRA QUIET - Low noise - HIGH PERFORMANCE

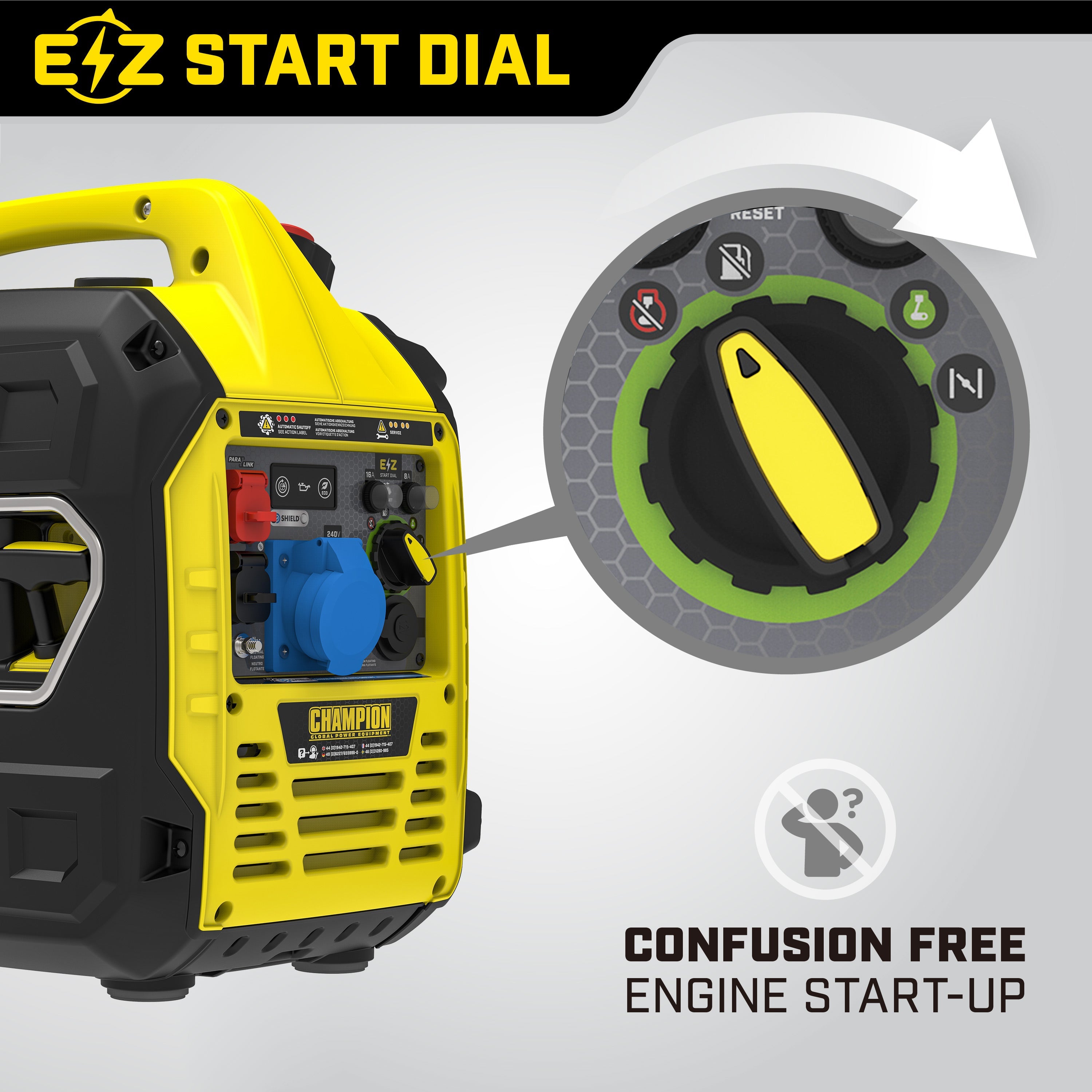

  • COLD START - Easy starts in COLD WEATHER
  • PARALLEL READY - Link 2 units for INCREASED POWER
  • CO2 SHIELD - Carbon Monoxide Auto-shutoff

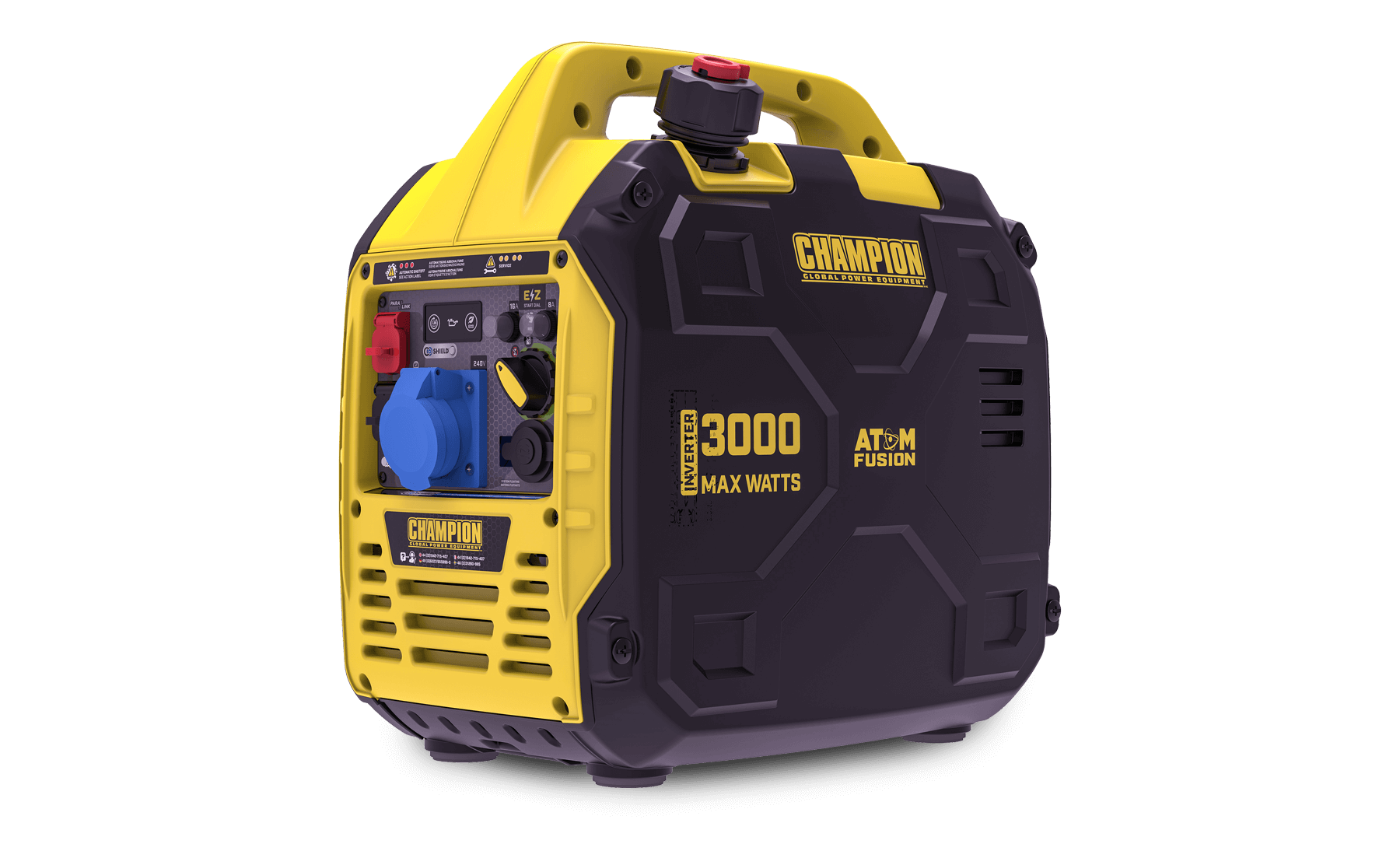

Champion’s 3000 watt inverter generator is one of the lightest in the industry at only 21.5kg, making portable power easier than ever!

Rely on the 149cc engine with a quiet 58 dBA for up to 11.5 hours of run time. The Parallel Kit (sold separately) can increase your output.

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine.

True Sine Wave inverter technology makes this generator ideal for sensitive electronics such as computers, laptops and TV. Perfect for your next camping trip or powering small household items like fridges/freezers, power tools, lighting units & garden equipment. This inverter has parallel capability allowing you to pair up with other Champion Inverters using an optional Parallel Kit.

Backed with a 3 year warranty, you can be assured of quality and support.

All newly manufactured products are EU Stage V Compliant.

Starting Watts4500
Max Watts3000
Rated Watts2800
Fuelpetrol
Noise Level @ 7m (dBA)58

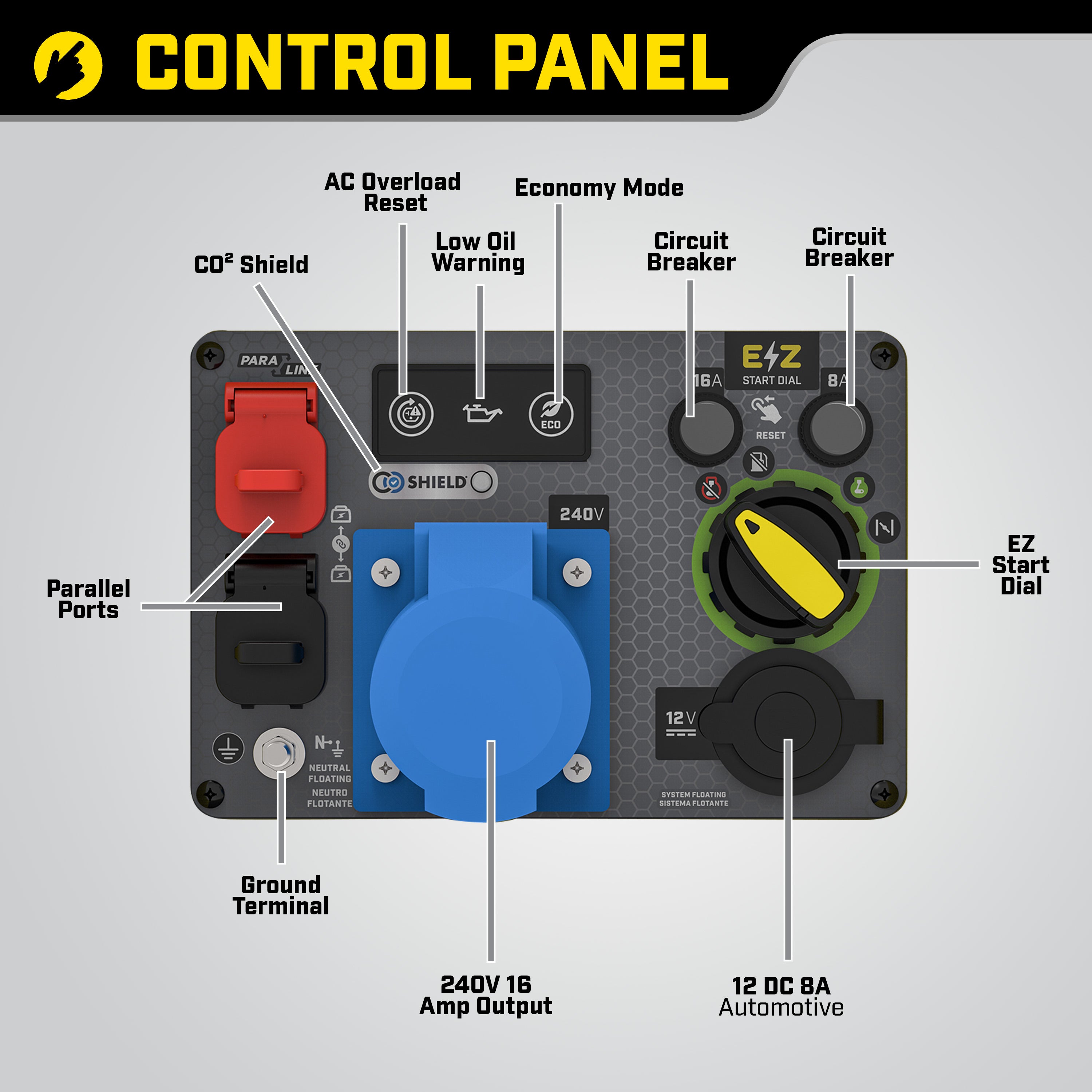

AC Load1 x 240v 16 Amp 2 x 240v 13 Amp (adapter)
Socket Rating16
DC Output12v
Start TypeRecoil
Engine CC149.0
Engine HP10.0
PhaseSingle
RPM4600
Power Factor1.0
Fuel Capacity (L)4.5
Oil Tank (ml)580
Low Oil ShutoffYes
Overload ProtectionYes
Cold Start TechnologyYes
Parallel ConnectivityYes
USB ConnectionYes
Warranty (Years)3
CertificationE10 Petrol Compliant, EU Stage V, UKCA
IP RatingIP23M
Weight (kg)21.5

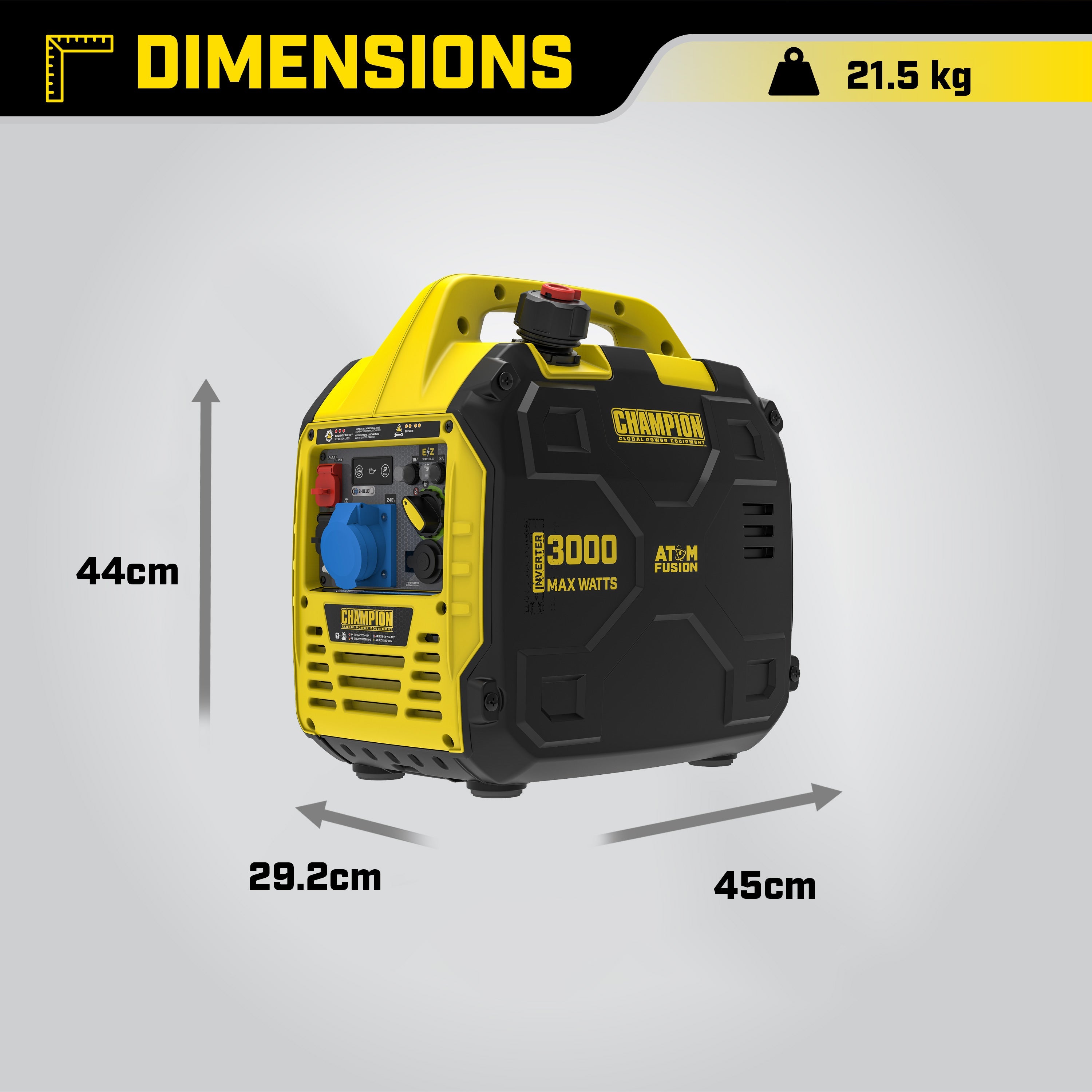

Dimensions mm (HxLxW)440 x 450 x 292
Fuel Consumption @ 25% load0.9 L/Hour (Petrol)
Fuel Consumption @ 50% load1.2 L/Hour (Petrol)
Fuel Consumption @ 75% load1.6 L/Hour (Petrol)
Fuel Consumption @ 100% load2.0 L/Hour (Petrol)

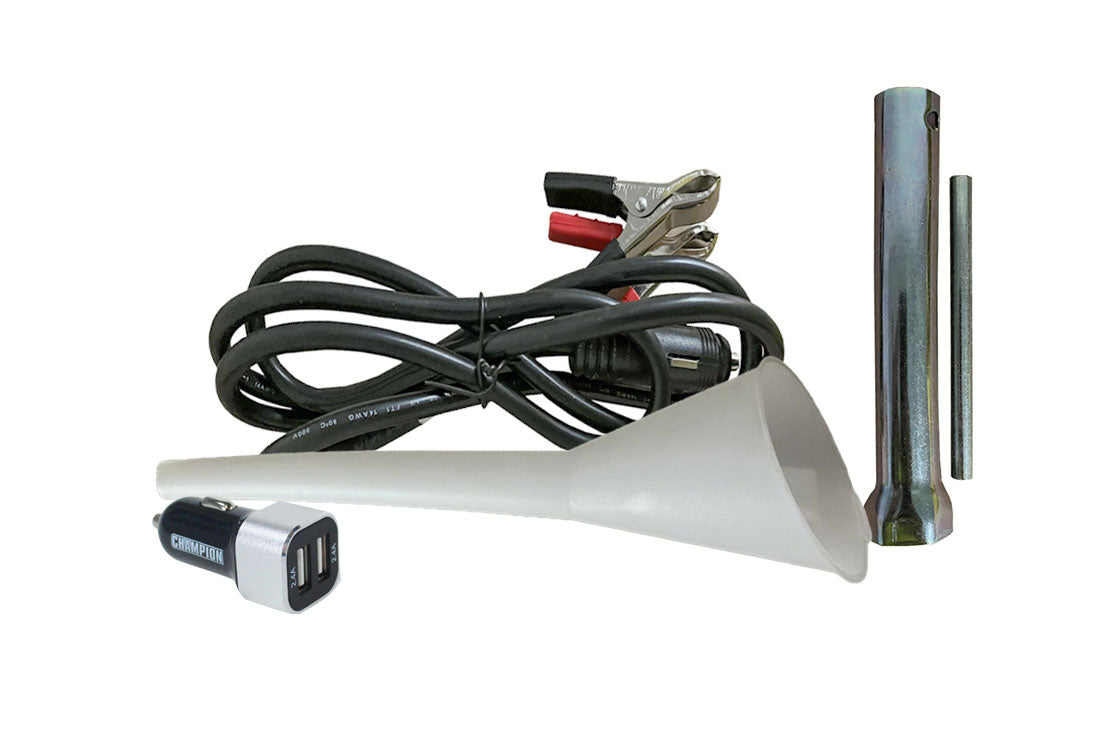

What's in the box:

  • Generator
  • 12v Usb Adapter

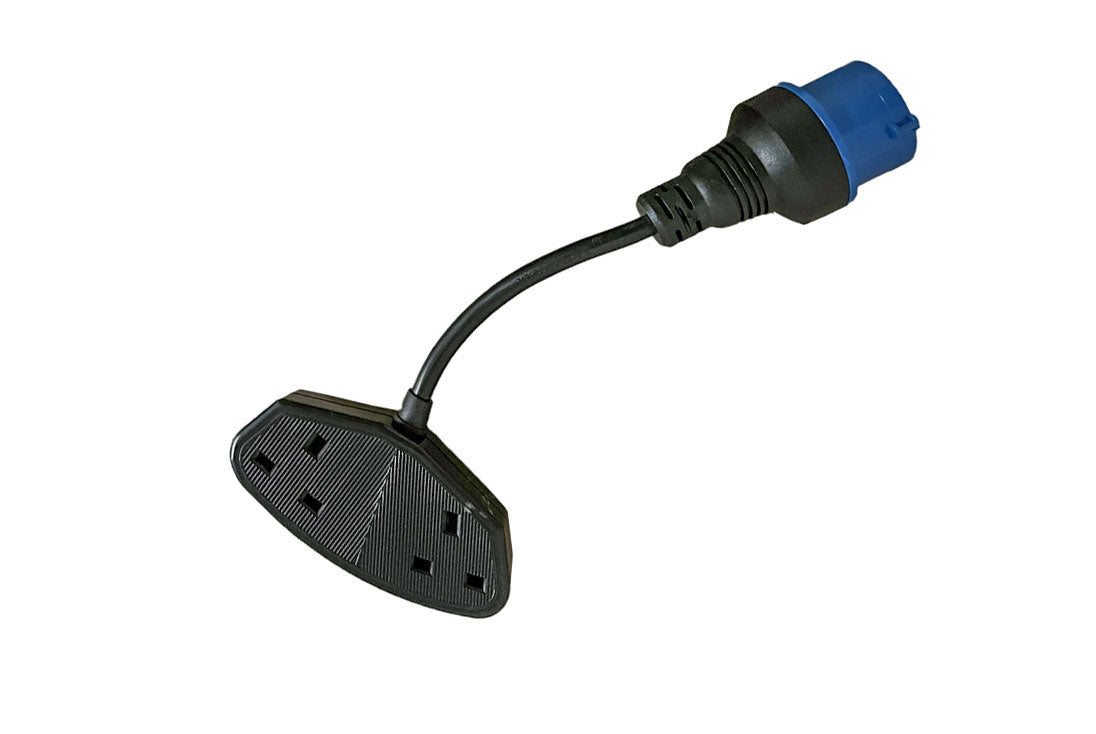

  • 16a-13a Adapter
  • Operators Manual
  • Oil Funnel
  • 12v Dc Battery Charging Cable
  • Spark Plug Socket
Champion 3000 Watt Inverter Generator - The Atom Fusion User Manual User Manual
Champion 3000 Watt Inverter Generator - The Atom Fusion Brochure Brochure
Champion 3000 Watt Inverter Generator - The Atom Fusion Product Spec Sheet Specifications Sheet

Use this guide to get an approximation of the wattage required to run your equipment.

Only add Watts together if you plan on using the products at the same time. For a more in-depth wattage review, use our handy Wattage Calculator.

HOME APPLIANCES
Machine Power in Watts Starting Coefficient
Coffee Maker 750-1050 1
Deep Freeze 90-400 3+
Fryer 1800-2000 1
Grill 1000-2500 1
Hair Dryer 1800-2200 1
Microwave Oven 1200-1600 2
Mixer 300-700 1
Oven 1800-3000 1
Refrigerator 50-250 3
Steam Iron 1400-2260 1
Toaster 850-1150 1
Tumble Dryer 1200-2500 1
Vacuum Cleaner 700-1800 1
Washing Machine 2100-2400 1.5
LIGHTING - TV - HIFI - COMPUTER
Machine Power in Watts Starting Coefficient
Desk Lamp 50-150 1
Radio 50-150 1
TV 100-350 1
WORKSHOP TOOLS
Machine Power in Watts Starting Coefficient
Angle Grinder 500-900 2
Cement Mixer 500-850 3
Circular Saw 1000-1600 1.5
Compressor 1200-2500 3+
Drill 500-1100 1
Finishing Sander 135-350 1
Grinder 120-400 1.5
Hammer Drill 600-800 1
High Pressure Washer 1200-3000 3
Hot Air Gun 1600-2000 1
Jig Saw 350-750 1
Orbital Sander 300-450 1
Peeling Machine 1800-2000 1
Planer 470-750 1
Router 800-1300 1
Spray Gun 95-750 1
GARDEN TOOLS
Machine Power in Watts Starting Coefficient
Chain Saw 1400-1800 2
Hedge Trimmer 400-800 2
Lawn Mower 300-1600 2
Shredder 700-2500 2
String Trimmer 200-600 2
OTHER
Machine Power in Watts Starting Coefficient
Air-conditioner 500-2500 3+
Heating 1000-1800 1

(Champion Generators is a trading brand of Winch Solutions Ltd.)

Warranty Qualifications

We at Champion understand the importance of warranty for service & repair, we are now offering a standard 2 Year (Warrior Diesel & selected Champion products) & 3 year warranty (Champion generator models Only) .

Please view the limitations below and read the full T&C’s about the warranty offered on a particular product.

Repair / Replacement Warranty

Champion equipment (selected Champion products) warrants to the original purchaser up to 3 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of One (1) year [Parts and Labour] Year Two (2) and Year Three (3) [Parts Only] from the original date of purchase or a 1000 hours which ever comes first.

Industrial & Commercial Use Year One (1) [Parts and Labour] and Year Two (2) [Parts Only] or 1000 hours which ever comes first.

Warrior branded diesel generators warrants to the original purchaser up to 2 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of Year One (1) [Parts and Labour] Year Two (2) [Parts Only] from the original date of purchase or 1000 hours which ever comes first.

Industrial & Commercial Use One Year (1) [Parts and Labour] or 500 hours which ever comes first.

Transportation charges on any product or part(s) submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.

Warranty Exclusions

This warranty DOES NOT cover the following:

Normal Wear

Your product needs periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will be voided and (or) not apply to parts or labour if your product is deemed to have been misused, neglected, involved in an accident, abused, overloaded beyond the generator’s limits, modified (Incl exhaust extension & filtration), installed improperly (Any out building, sheds, garages, confined spaces or vehicles), connected incorrectly to any electrical component or used for hire purposes. Normal maintenance is not covered by this warranty.

Other Exclusions

This warranty excludes:
– cosmetic defects such as paint, decals, Stickers
– worn parts including piston & rings, spark plugs, filters
– accessory parts including funnels, spanners, spark plug tubes, stands, wheels, recoil assemblies
- any electrical component other than main control unit like wiring, fuses, connectors, switches, dials, displays and knobs.
- all hoses, pipes Reducing valves and Regulators (Plastic, Rubber, Copper or Steel)
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original Champion Power Equipment parts
- alteration or modification(s) made by any party other than the manufacturer including exhaust extension and filtration systems.
- any third party electrical equipment

12v Battery

– All batteries supplied Over 1 Year Old.

Suitable Transfer Switch

Any MTS (Manual Transfer) & ATS (Automatic Transfer) systems other that ones supplied by ourselves under WARRIOR or CHAMPION will not be considered suitable and will invalidate all warranties given. Please contact us direct before installing any Transfer system.

Limits of Implied Warranty and Consequential Damage

Winch Solutions Ltd (CG) disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim costs by anyone using this product.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from country to country. Your country may also have other rights you may be entitled to that are not listed within this warranty.

To keep your Champion Generator in good running order, please adhere to the service guide below.

This guide can also be found in your Owners Manual.

Every 8 hours or prior to each use
Check oil level
Clean around air intake and muffler
First 5 hours (break in)
Change oil
Every 50 hours or annually
Clean air filter
Change oil if operating under heavy load or in hot environments
Every 100 hours or annually
Change oil
Clean/adjust spark plug
Clean spark arrestor
Clean fuel valve filter*
Every 250 hours
Clean combustion chamber*
Check/adjust valve clearance*
Every 3 years
Replace fuel line*

* To be performed by knowledgeable, experienced owners or CPE certified service centers.

Reviews and Q&A

Customer Reviews

Based on 1 review Write a review
  • Hello, i am looking run a log splitter that is 2300w and also use for backup on basic home appliances during power outage. I was wondering if a 3000w would be enough for the log splitter? Thanks

    Hello,

    Thanks for reaching out.

    If you would like to contact us with the spec list of the tools you wish to power we would be happy to look into this for you.

    Alternatively



    Take a look at our generator selector on the link below.



    Simply add the items you wish to use and the website will automatically narrow down your options to ones that are compatible with your goals.



    https://www.championpowerequipment.co.uk/generator-selector.php



    Thanks



    James.
