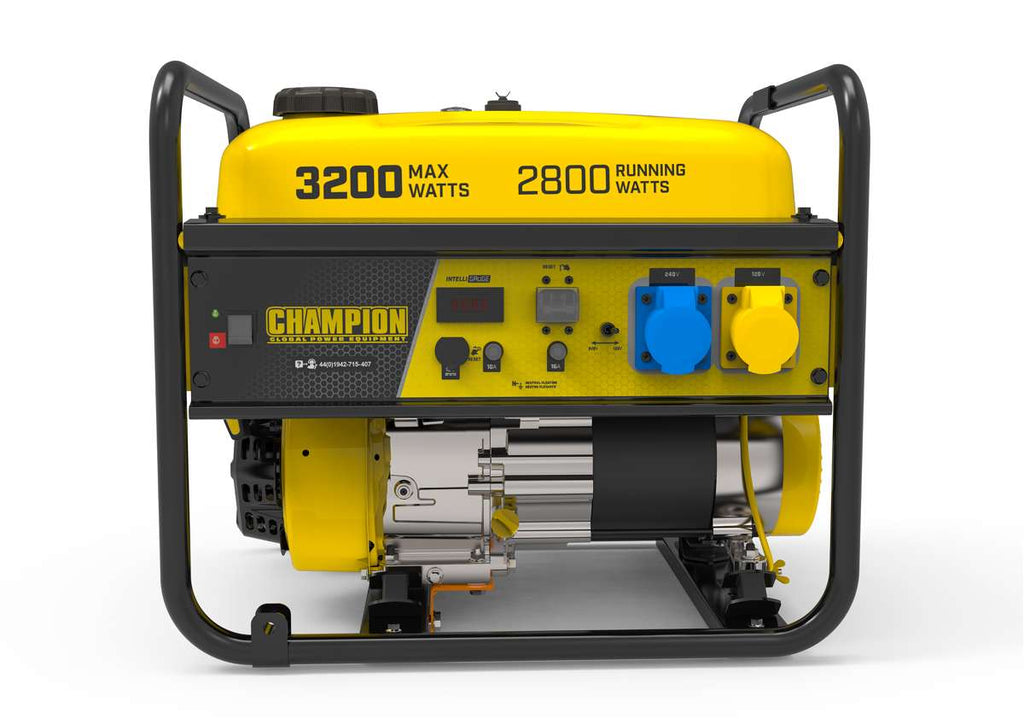

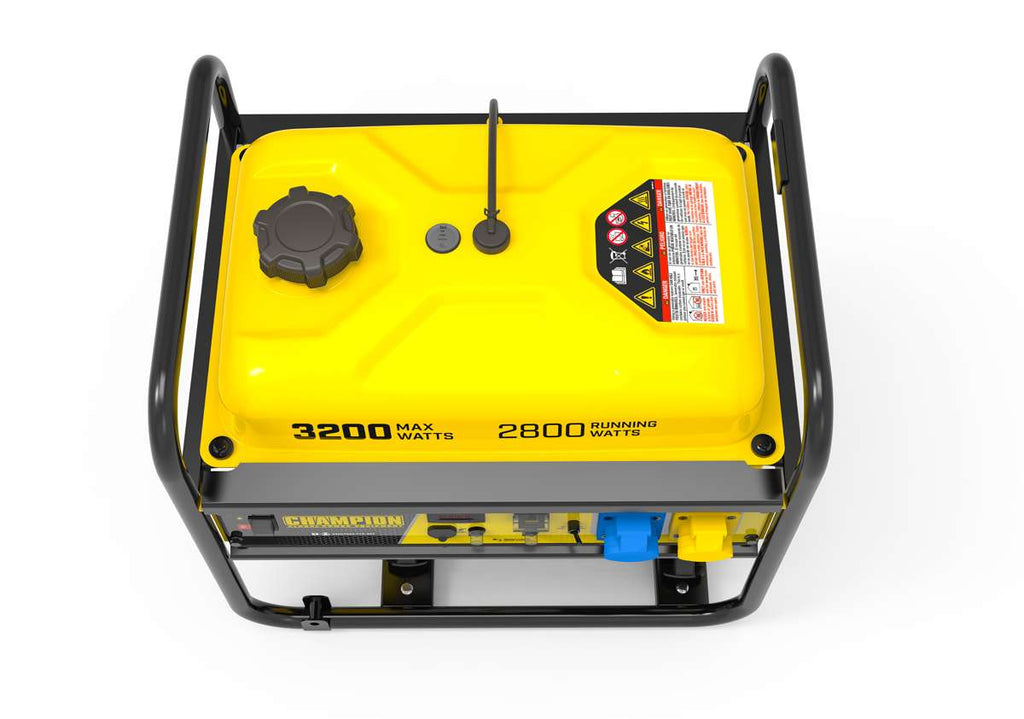

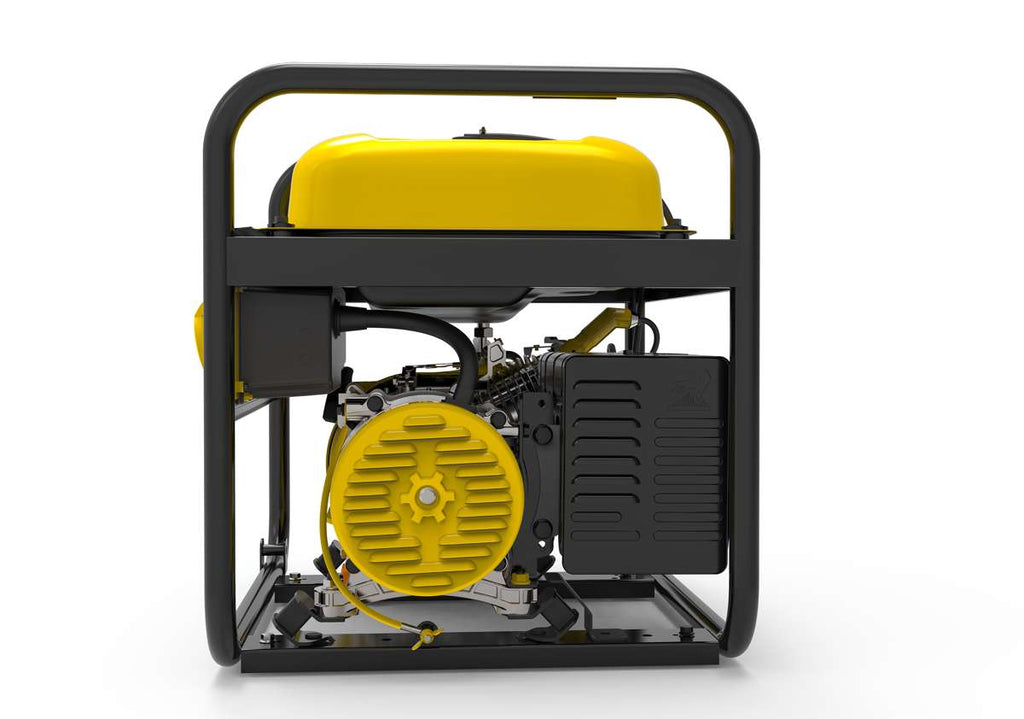

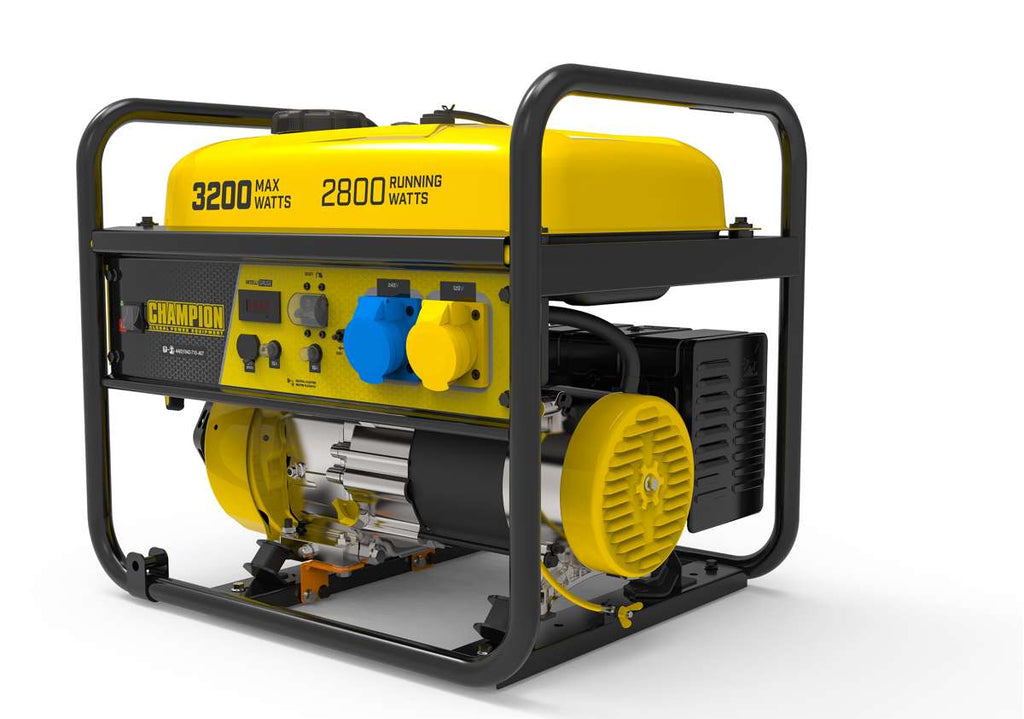

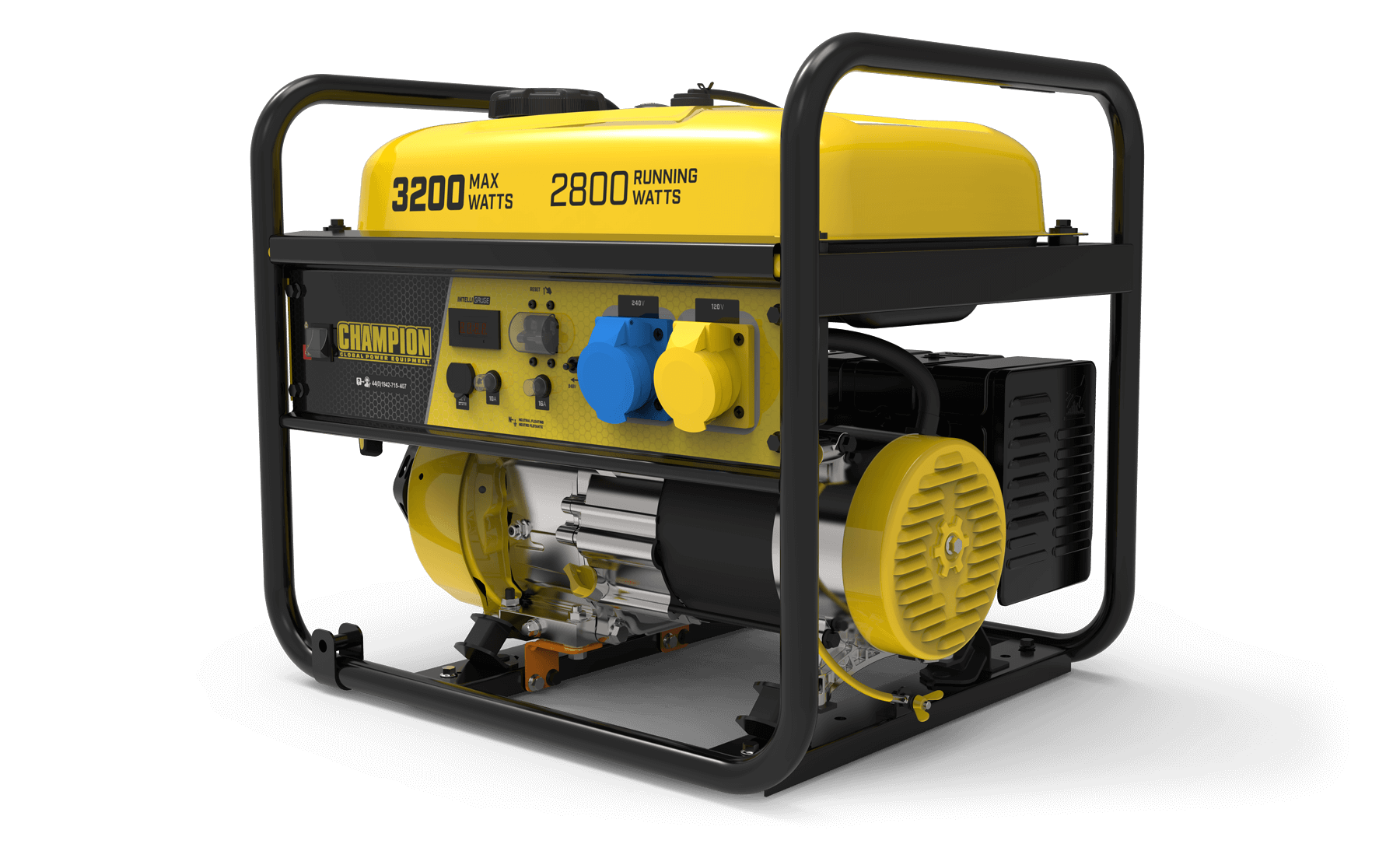

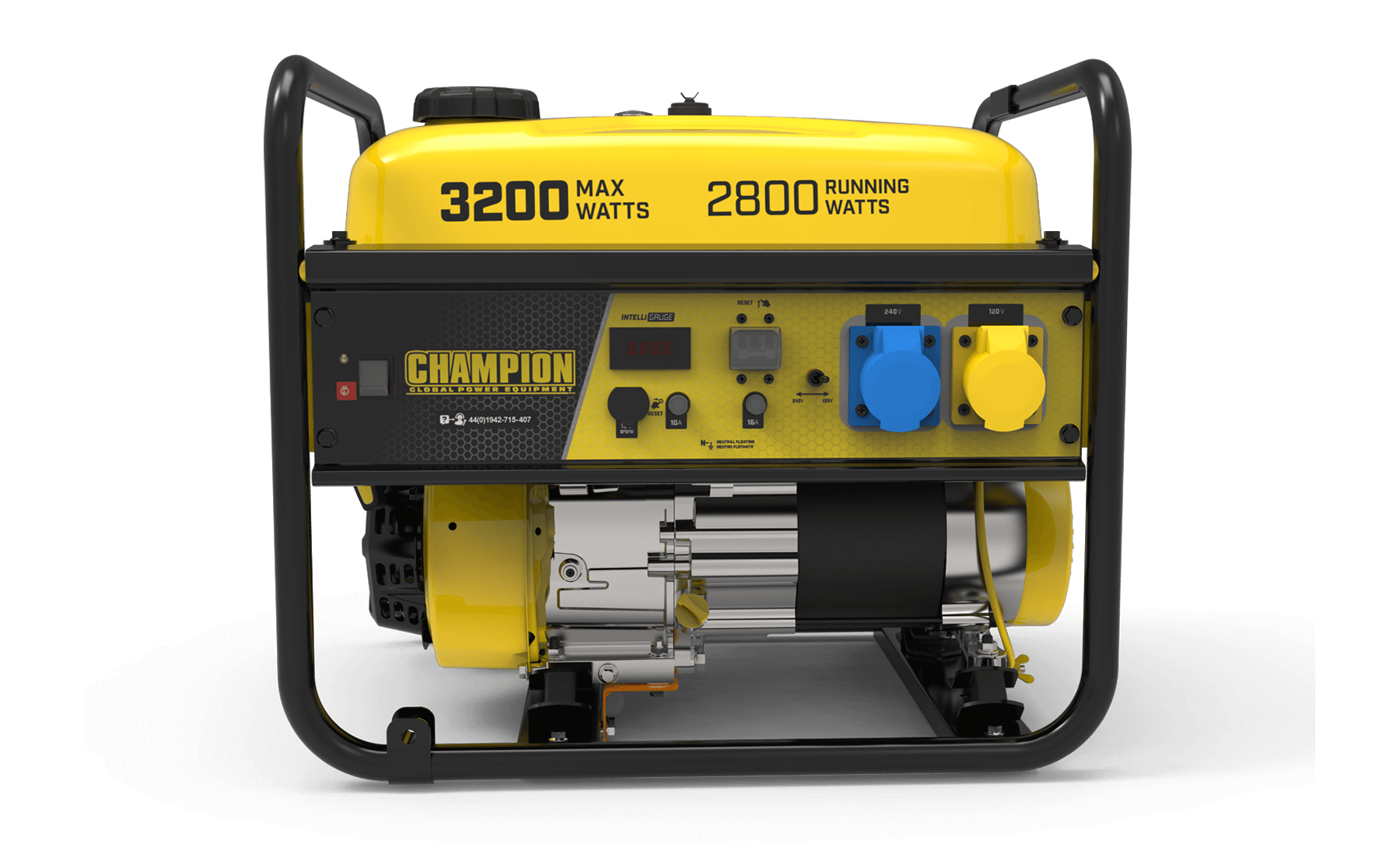

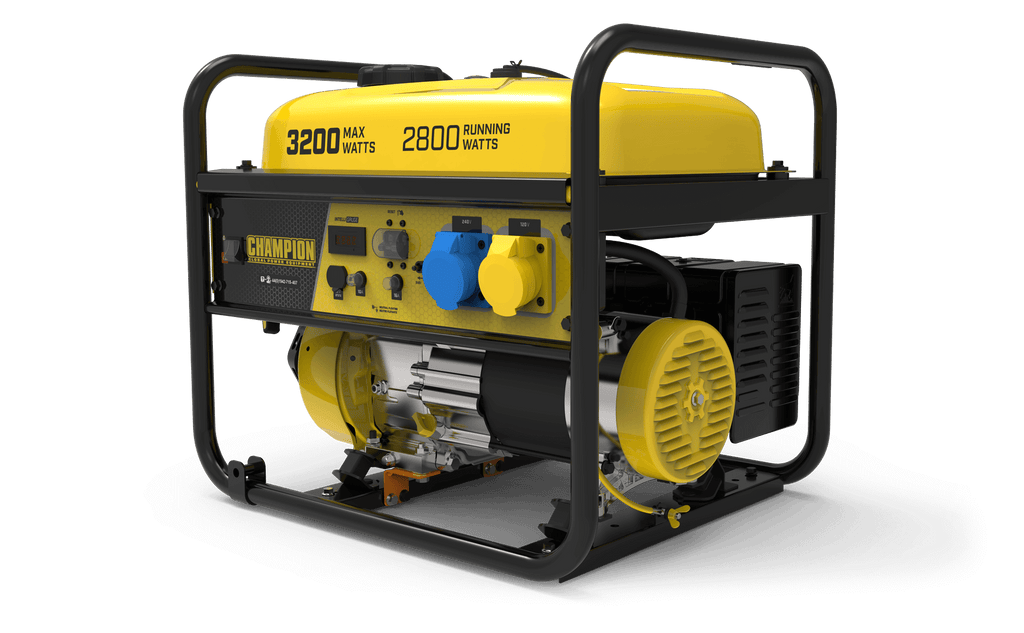

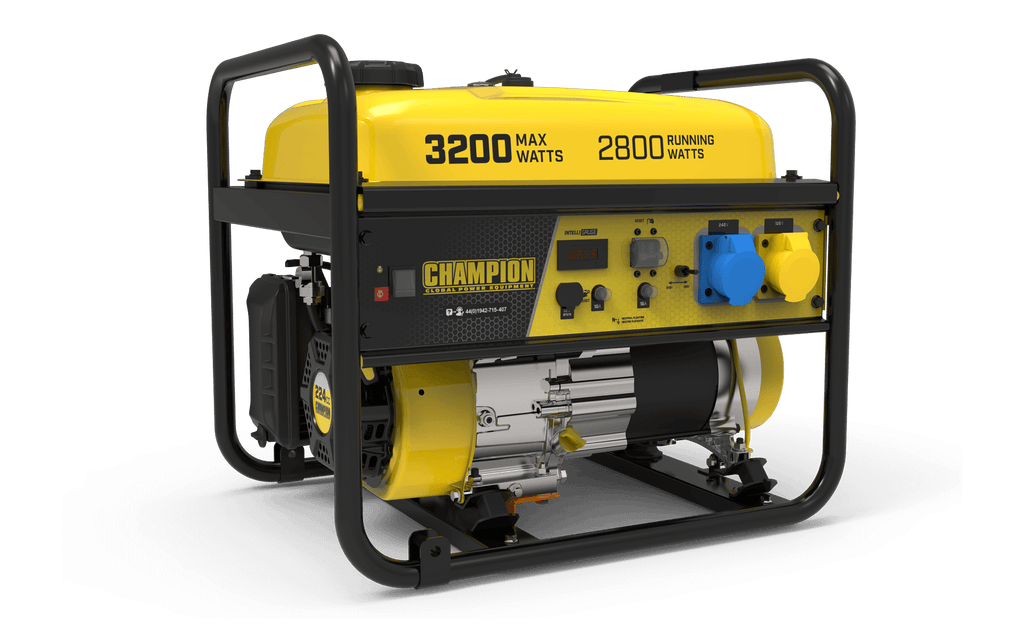

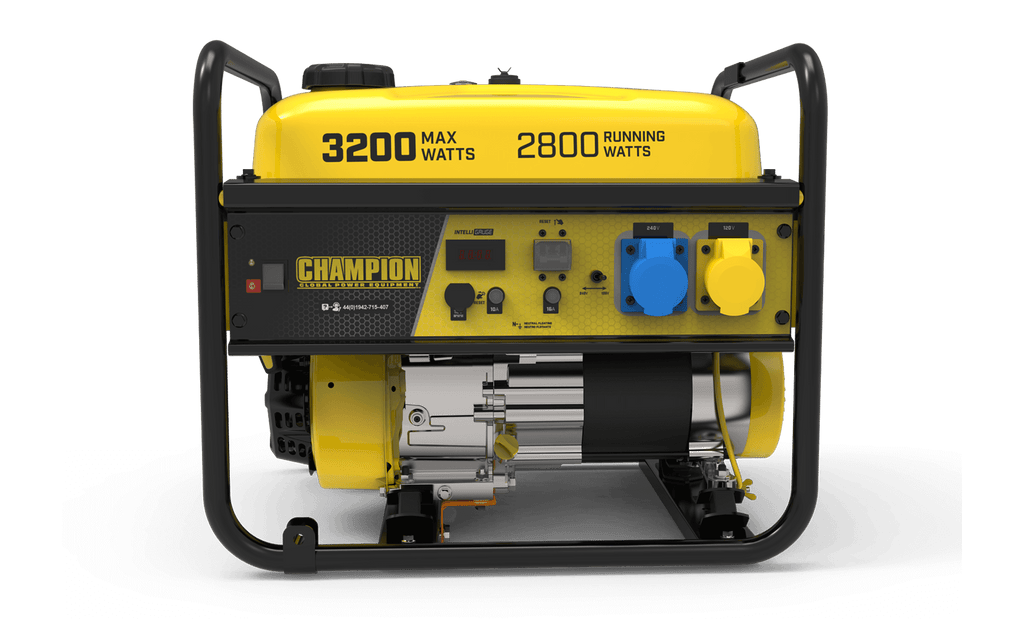

Champion 3200 Watt Petrol Generator

SKU: 500560-UK EAN: 5060423986317

Find a store near you
Or buy online from our approved partners:
Bimson Power Logo
Recommended Accessories

Features

  • No frills, no fuss generator.

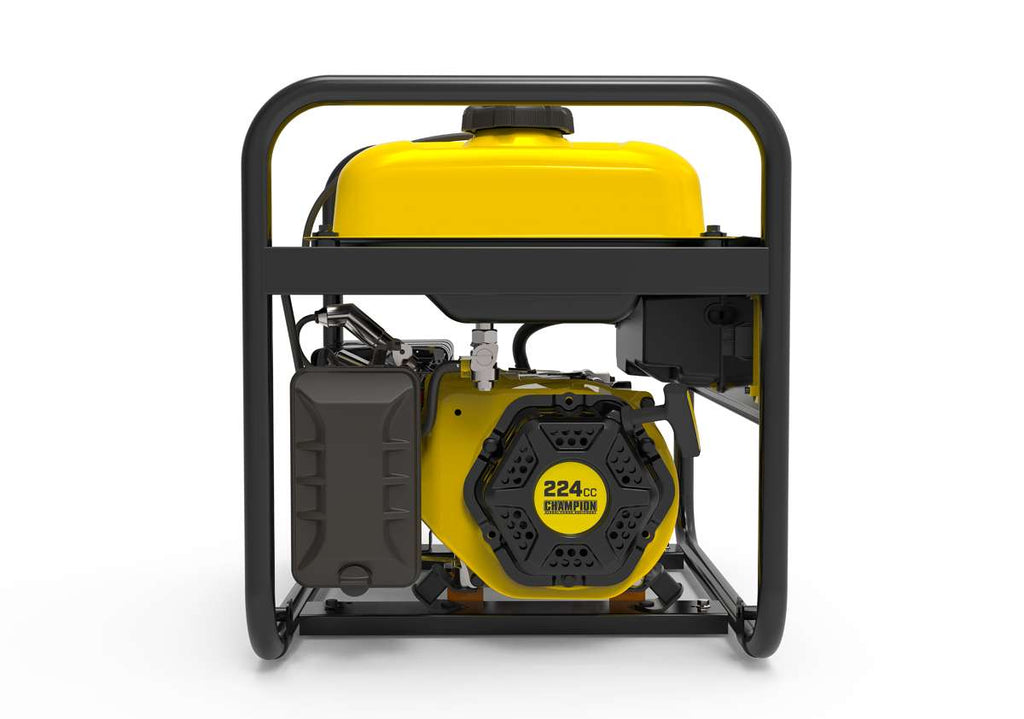

  • Petrol powered 224cc engine with up to 12 hours run time at 50% load
  • Reliable Champion engine produces 2800 running watts
  • Low oil shut-off sensor, this generator has a 600ml oil capacity
  • Durable tubular steel frame

This new designed portable generator offers a increased output power with digital display and is ideal for all sorts of application including domestic, construction, industrial as well as a small catering vans.

This auto governor generator has AVR technology which provides a steady output sign wave. With heavy-duty industrial frame design offers protection and aids portability especially if the wheels & handle kit (optional extras) is are added.

This portable generator is fitted with a 12VDC output supply as well as 16A 120V & 230V sockets.

Features of this portable generator are four stroke OHV petrol engine resulting in smooth running, anti-vibration mountings, fuel gauge and for safety, automatic low oil cut-out.

With a 17.8 litre fuel tank this unit can run up to 12 hours at 50% load.

Please Note: Dual voltage generators will only give approx. 50-60% of the rated output wattage on 120v per socket.


All newly manufactured products are EU Stage V Compliant.

Starting Watts3500
Max Watts3200
Rated Watts2800
Fuelpetrol
Noise Level @ 7m (dBA)68
AC Load1 x 110v 16amp
1 x 240v 16amp
Socket Rating16/16
Start TypeRecoil
Engine CC224.0
Engine HP6.9
PhaseSingle
RPM3000
Power Factor1.0
Fuel Capacity (L)17.8
Oil Tank (ml)600
Low Oil ShutoffAutomatic
Overload ProtectionYes
AVR (Automatic Voltage Regulator)Yes
Fuel GaugeYes

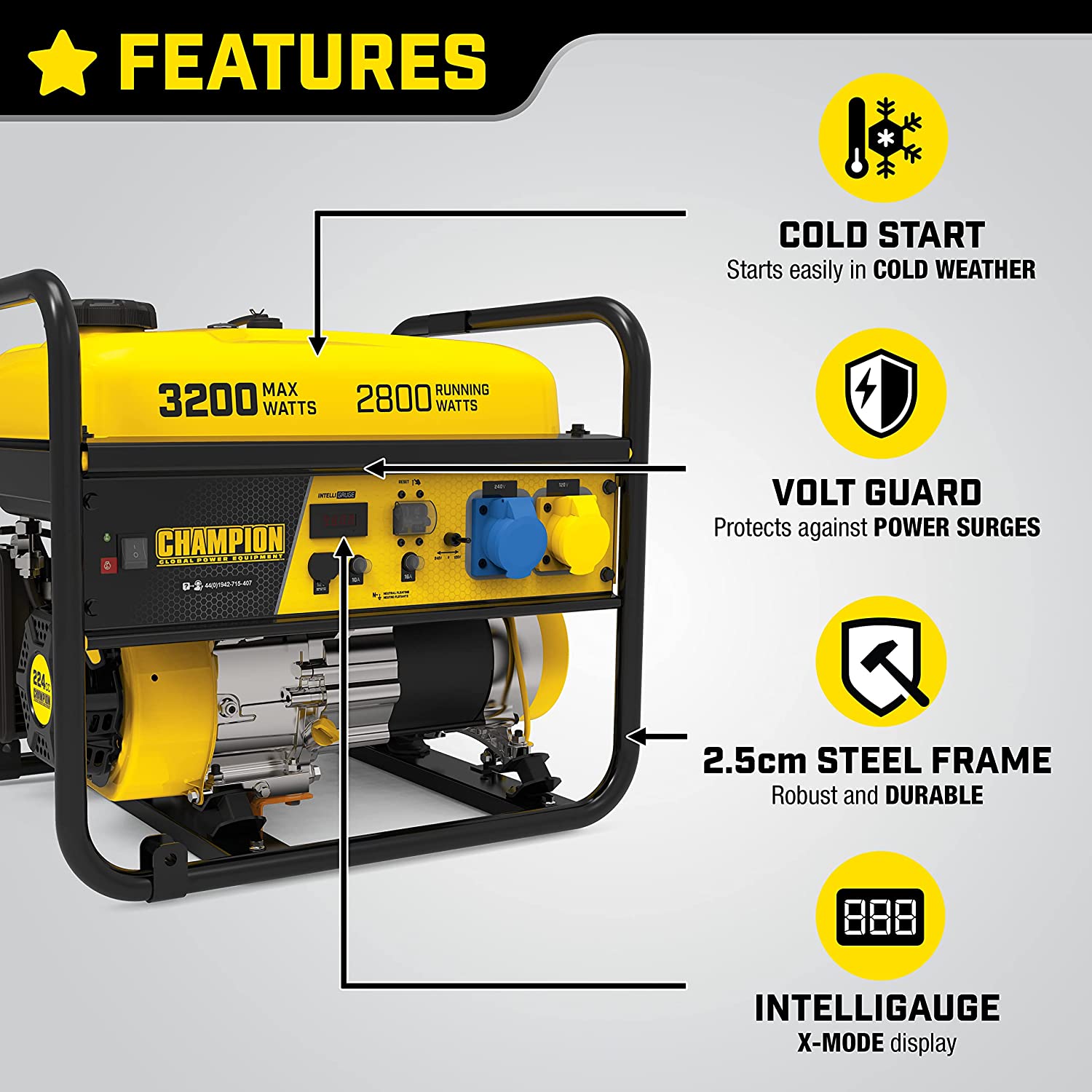

Cold Start TechnologyYes
IntelligaugeYes
Volt GuardYes
Warranty (Years)3
CertificationCE, EU Stage V
IP RatingIP23M
Weight (kg)46.0

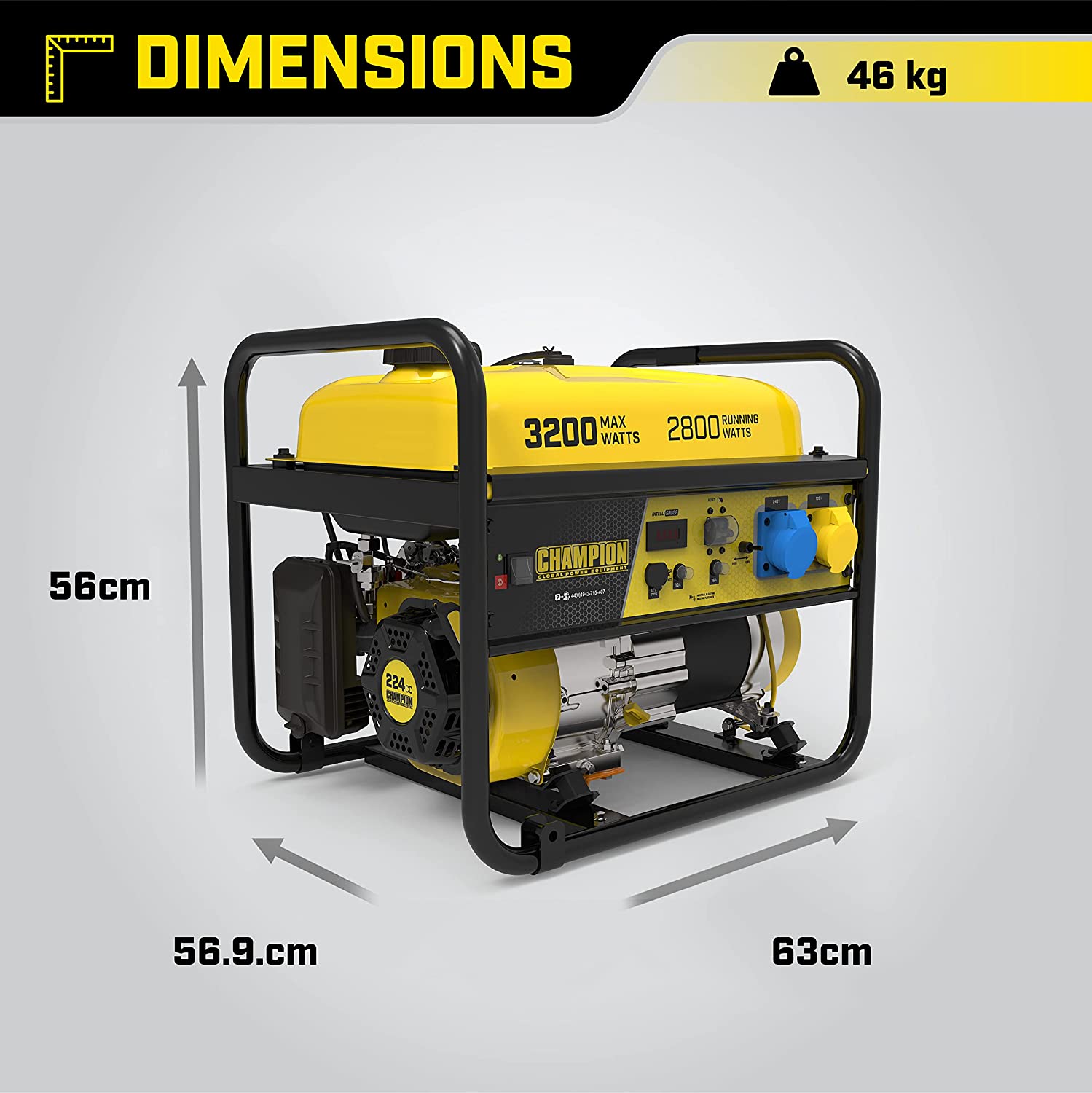

Dimensions mm (HxLxW)560 x 630 x 599
Fuel Consumption @ 50% load1.46 L/Hour (Petrol)
Fuel Consumption @ 75% load1.73 L/Hour (Petrol)
Fuel Consumption @ 100% load2.24 L/Hour (Petrol)

What's in the box:

  • Champion 3200 Watt Petrol Generator
  • Operating manual
Champion 3200 Watt Petrol Generator User Manual User Manual
Champion 3200 Watt Petrol Generator Technical Drawing Technical Drawing
Champion 3200 Watt Petrol Generator Brochure Brochure
Champion 3200 Watt Petrol Generator Quick Start Guide Quick Start

Use this guide to get an approximation of the wattage required to run your equipment.

Only add Watts together if you plan on using the products at the same time. For a more in-depth wattage review, use our handy Wattage Calculator.

HOME APPLIANCES
Machine Power in Watts Starting Coefficient
Coffee Maker 750-1050 1
Deep Freeze 90-400 3+
Fryer 1800-2000 1
Grill 1000-2500 1
Hair Dryer 1800-2200 1
Microwave Oven 1200-1600 2
Mixer 300-700 1
Oven 1800-3000 1
Refrigerator 50-250 3
Steam Iron 1400-2260 1
Toaster 850-1150 1
Tumble Dryer 1200-2500 1
Vacuum Cleaner 700-1800 1
Washing Machine 2100-2400 1.5
LIGHTING - TV - HIFI - COMPUTER
Machine Power in Watts Starting Coefficient
Desk Lamp 50-150 1
Radio 50-150 1
TV 100-350 1
WORKSHOP TOOLS
Machine Power in Watts Starting Coefficient
Angle Grinder 500-900 2
Cement Mixer 500-850 3
Circular Saw 1000-1600 1.5
Compressor 1200-2500 3+
Drill 500-1100 1
Finishing Sander 135-350 1
Grinder 120-400 1.5
Hammer Drill 600-800 1
High Pressure Washer 1200-3000 3
Hot Air Gun 1600-2000 1
Jig Saw 350-750 1
Orbital Sander 300-450 1
Peeling Machine 1800-2000 1
Planer 470-750 1
Router 800-1300 1
Spray Gun 95-750 1
GARDEN TOOLS
Machine Power in Watts Starting Coefficient
Chain Saw 1400-1800 2
Hedge Trimmer 400-800 2
Lawn Mower 300-1600 2
Shredder 700-2500 2
String Trimmer 200-600 2
OTHER
Machine Power in Watts Starting Coefficient
Air-conditioner 500-2500 3+
Heating 1000-1800 1

(Champion Generators is a trading brand of Winch Solutions Ltd.)

Warranty Qualifications

We at Champion understand the importance of warranty for service & repair, we are now offering a standard 2 Year (Warrior Diesel & selected Champion products) & 3 year warranty (Champion generator models Only) .

Please view the limitations below and read the full T&C’s about the warranty offered on a particular product.

Repair / Replacement Warranty

Champion equipment (selected Champion products) warrants to the original purchaser up to 3 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of One (1) year [Parts and Labour] Year Two (2) and Year Three (3) [Parts Only] from the original date of purchase or a 1000 hours which ever comes first.

Industrial & Commercial Use Year One (1) [Parts and Labour] and Year Two (2) [Parts Only] or 1000 hours which ever comes first.

Warrior branded diesel generators warrants to the original purchaser up to 2 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of Year One (1) [Parts and Labour] Year Two (2) [Parts Only] from the original date of purchase or 1000 hours which ever comes first.

Industrial & Commercial Use One Year (1) [Parts and Labour] or 500 hours which ever comes first.

Transportation charges on any product or part(s) submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.

Warranty Exclusions

This warranty DOES NOT cover the following:

Normal Wear

Your product needs periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will be voided and (or) not apply to parts or labour if your product is deemed to have been misused, neglected, involved in an accident, abused, overloaded beyond the generator’s limits, modified (Incl exhaust extension & filtration), installed improperly (Any out building, sheds, garages, confined spaces or vehicles), connected incorrectly to any electrical component or used for hire purposes. Normal maintenance is not covered by this warranty.

Other Exclusions

This warranty excludes:
– cosmetic defects such as paint, decals, Stickers
– worn parts including piston & rings, spark plugs, filters
– accessory parts including funnels, spanners, spark plug tubes, stands, wheels, recoil assemblies
- any electrical component other than main control unit like wiring, fuses, connectors, switches, dials, displays and knobs.
- all hoses, pipes Reducing valves and Regulators (Plastic, Rubber, Copper or Steel)
– failures due to acts of God and other force majeure events beyond the manufacturer’s control
– problems caused by parts that are not original Champion Power Equipment parts
- alteration or modification(s) made by any party other than the manufacturer including exhaust extension and filtration systems.
- any third party electrical equipment

12v Battery

– All batteries supplied Over 1 Year Old.

Suitable Transfer Switch

Any MTS (Manual Transfer) & ATS (Automatic Transfer) systems other that ones supplied by ourselves under WARRIOR or CHAMPION will not be considered suitable and will invalidate all warranties given. Please contact us direct before installing any Transfer system.

Limits of Implied Warranty and Consequential Damage

Winch Solutions Ltd (CG) disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim costs by anyone using this product.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from country to country. Your country may also have other rights you may be entitled to that are not listed within this warranty.

To keep your Champion Generator in good running order, please adhere to the service guide below.

This guide can also be found in your Owners Manual.

Every 8 hours or prior to each use
Check oil level
Clean around air intake and muffler
First 5 hours (break in)
Change oil
Every 50 hours or annually
Clean air filter
Change oil if operating under heavy load or in hot environments
Every 100 hours or annually
Change oil
Clean/adjust spark plug
Clean spark arrestor
Clean fuel valve filter*
Every 250 hours
Clean combustion chamber*
Check/adjust valve clearance*
Every 3 years
Replace fuel line*

* To be performed by knowledgeable, experienced owners or CPE certified service centers.

Reviews and Q&A

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Keith Derby
Great Generator, excellent value

I bought this generator as a domestic electrical backup supply.
We have had power cuts in the past and with the way the world is going at the moment it's nice to have peace at mind we have backup power available.
This generator is well made and easy to use with a decent power output and run time.
Very pleased with my purchase at a great price .

  • Has this model got an exhaust extension pipe kit

    Hello,

    Thanks for the question.

    Whilst we are always looking at expanding our range of accesories the exhaust kit is not currently something we offer.

    This is something we will be sure to look into to help our customers meet any needs they may have. 7

    Thanks!

  • Will this Champion 3200 Watt Petrol Generator run a 900w Microwave / Convection oven? rated voltage 230-240V ~50Hz Power Input Microwave 1400~1450W Convection 2300-2500W Thank you

    The best way to work out your generator options is to enter all the requirements into our wattage calculator, which can be found here:

    https://www.championpowerequipment.co.uk/pages/generator-selector
