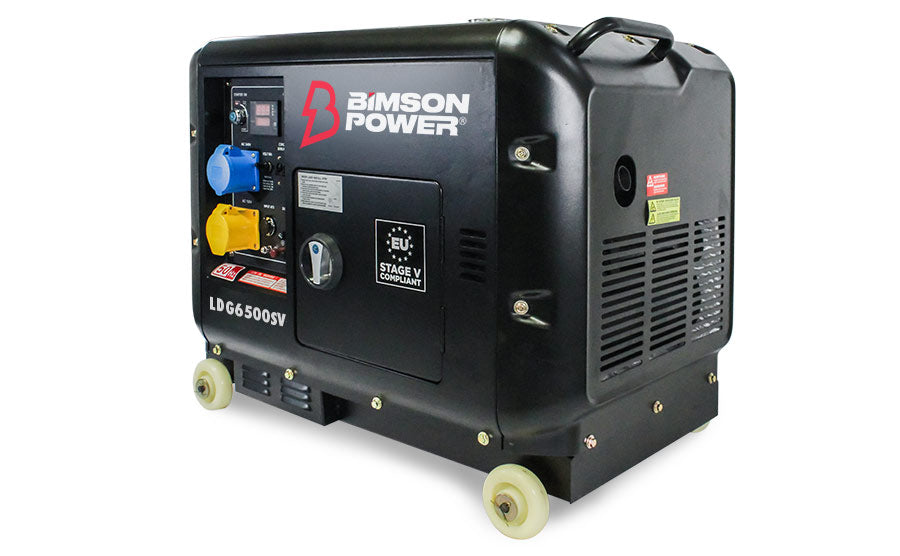

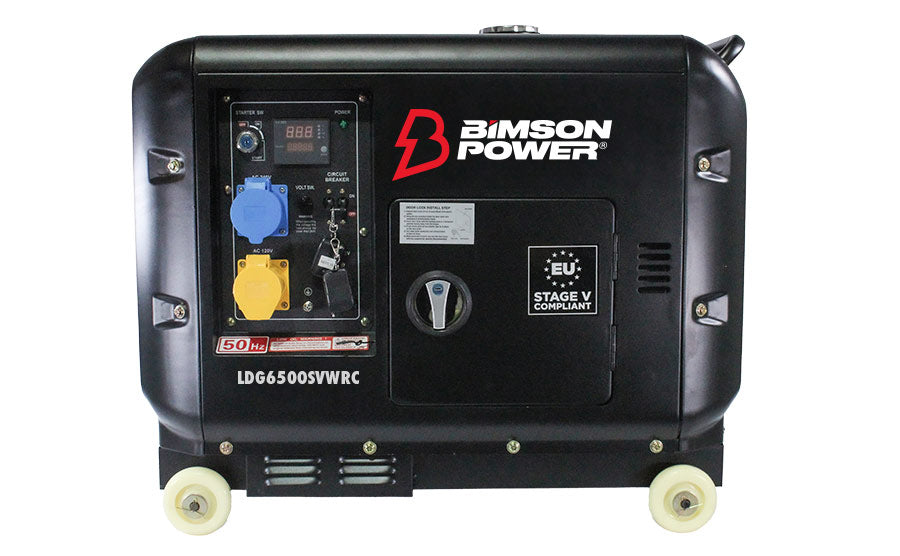

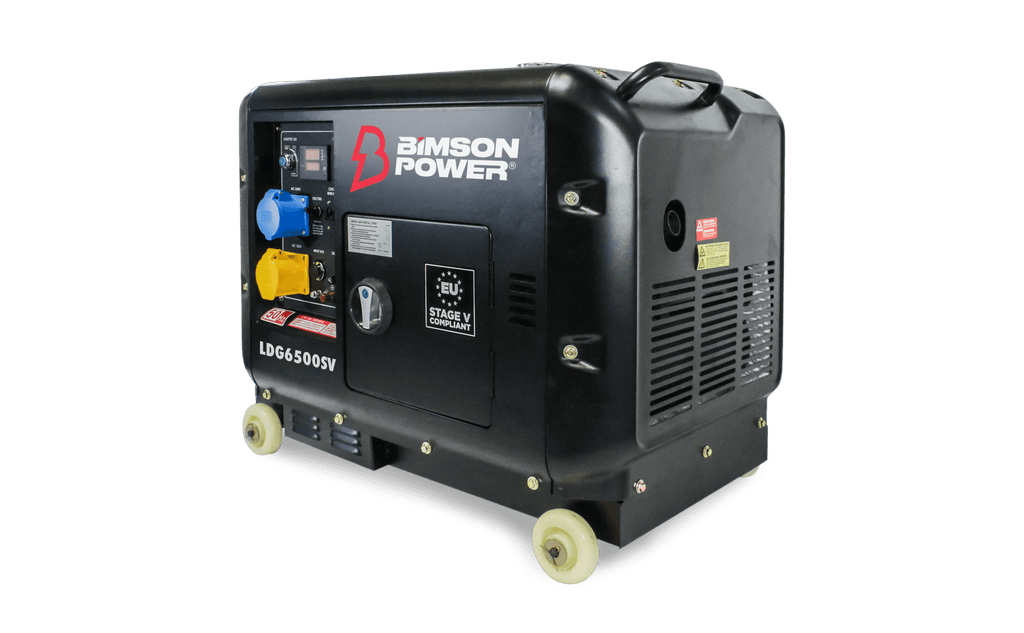

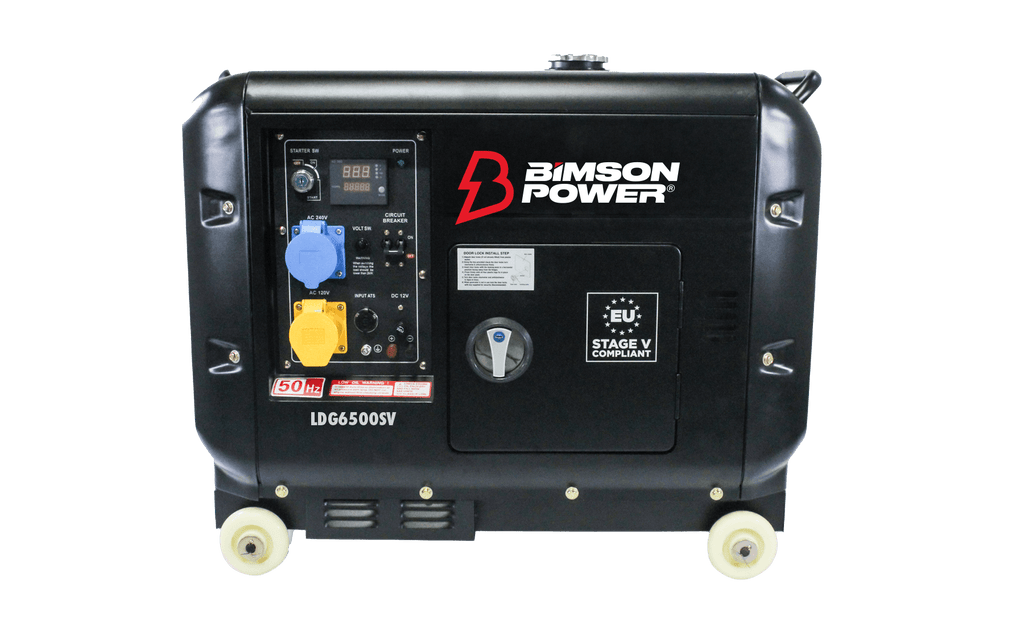

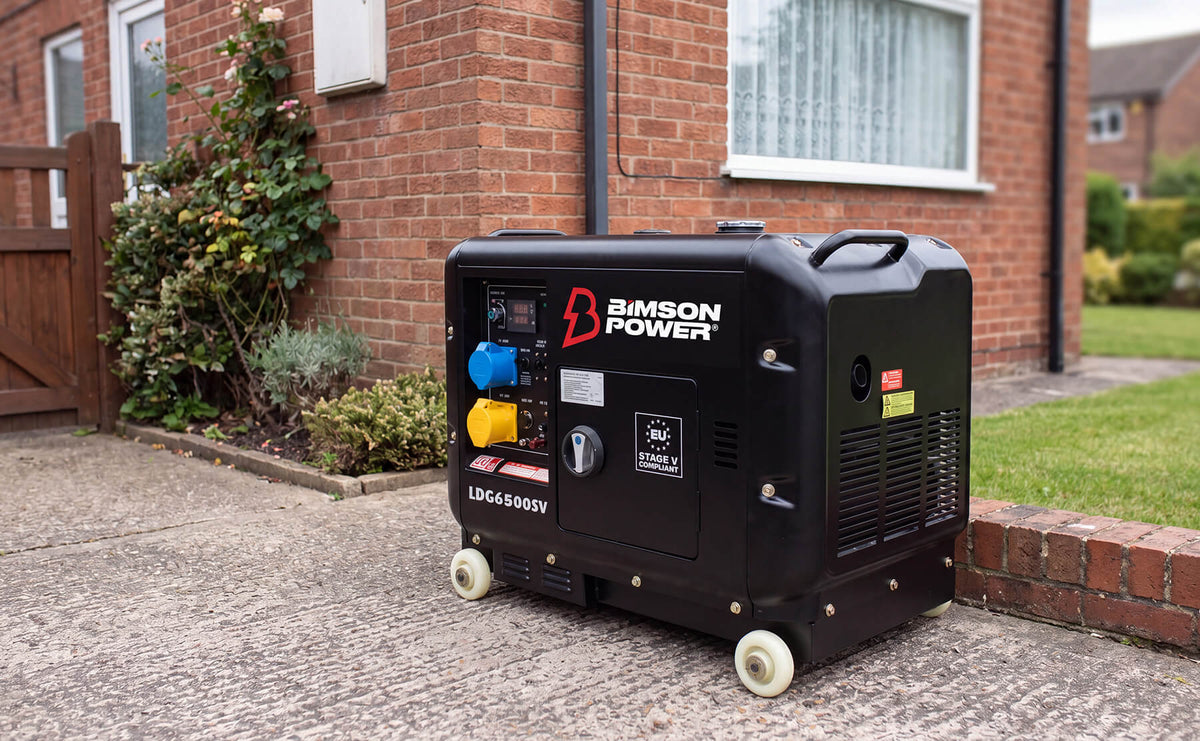

Warrior 6.25 kVa Diesel Generator

kVa	6.25
Max Watts	5500
Rated Watts	5000
Fuel	diesel
Noise Level @ 7m (dBA)	68
AC Load	1 x 120V 32amp, 1 x 240V 32amp
ATS Input	Yes
Socket Rating	32 / 32
Start Type	Electric
Engine CC	474.0
Engine HP	5.8
Phase	Single
RPM	3000
Power Factor	1.0
Fuel Capacity (L)	16.0
Oil Tank (ml)	1100
Choke TYpe	Automatic
Low Oil Shutoff	Automatic
Electric Start	Yes
Overload Protection	Yes
AVR (Automatic Voltage Regulator)	Yes
Fuel Gauge	Yes
Intelligauge	Yes
Voltmeter	Yes
Wheels	Included
Warranty (Years)	2
Certification	EU Stage V, GS, ISO9001-2000, TUV, UKCA
Weight (kg)	168.0

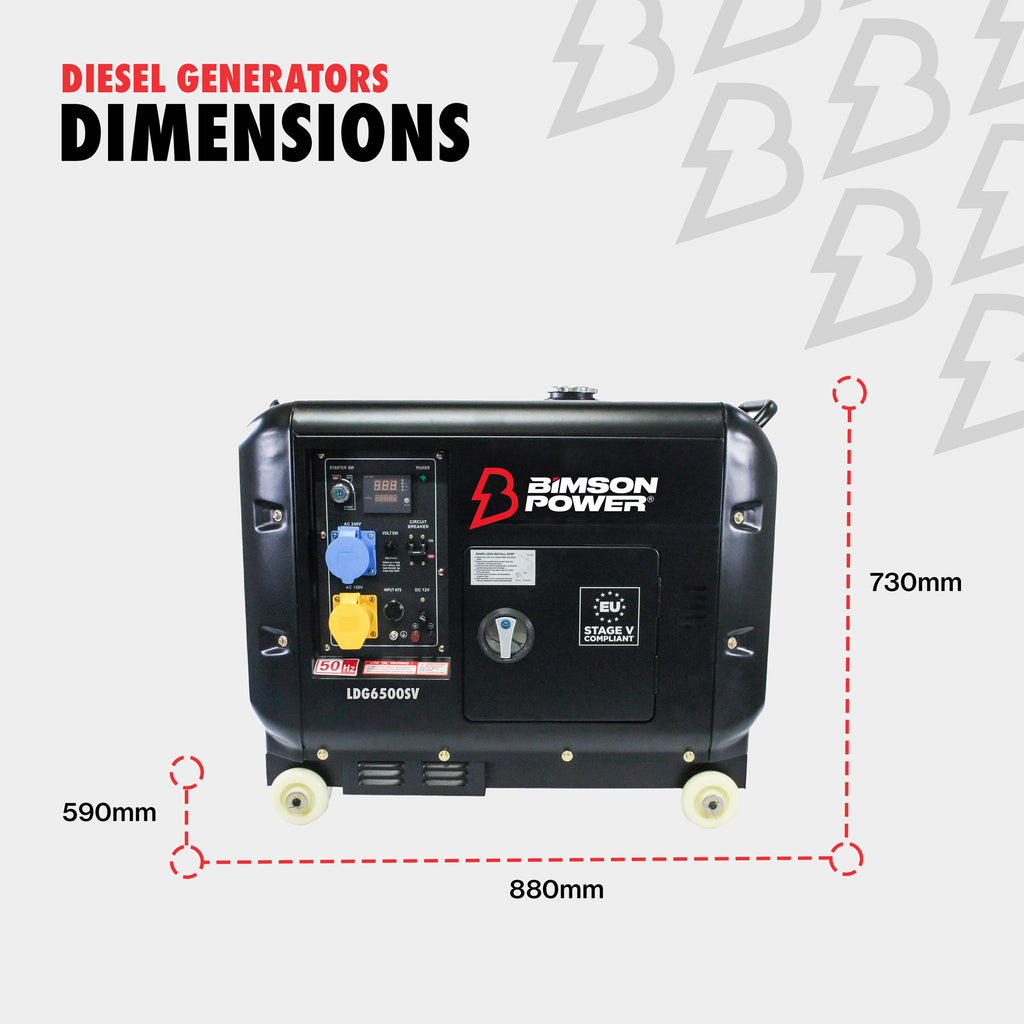

Dimensions mm (HxLxW)	730 x 880 x 590

What's in the box:

• Warrior 6.25 kVa Diesel Generator
• Optional: Remote Key with LDG6500SVWR Model
• Operating manual

Warrior 6.25 kVa Diesel Generator User Manual	User Manual

Use this guide to get an approximation of the wattage required to run your equipment.

Only add Watts together if you plan on using the products at the same time. For a more in-depth wattage review, use our handy Wattage Calculator.

HOME APPLIANCES
Machine	Power in Watts	Starting Coefficient
Coffee Maker	750-1050	1
Deep Freeze	90-400	3+
Fryer	1800-2000	1
Grill	1000-2500	1
Hair Dryer	1800-2200	1
Microwave Oven	1200-1600	2
Mixer	300-700	1
Oven	1800-3000	1
Refrigerator	50-250	3
Steam Iron	1400-2260	1
Toaster	850-1150	1
Tumble Dryer	1200-2500	1
Vacuum Cleaner	700-1800	1
Washing Machine	2100-2400	1.5
LIGHTING - TV - HIFI - COMPUTER
Machine	Power in Watts	Starting Coefficient
Desk Lamp	50-150	1
Radio	50-150	1
TV	100-350	1
WORKSHOP TOOLS
Machine	Power in Watts	Starting Coefficient
Angle Grinder	500-900	2
Cement Mixer	500-850	3
Circular Saw	1000-1600	1.5
Compressor	1200-2500	3+
Drill	500-1100	1
Finishing Sander	135-350	1
Grinder	120-400	1.5
Hammer Drill	600-800	1
High Pressure Washer	1200-3000	3
Hot Air Gun	1600-2000	1
Jig Saw	350-750	1
Orbital Sander	300-450	1
Peeling Machine	1800-2000	1
Planer	470-750	1
Router	800-1300	1
Spray Gun	95-750	1
GARDEN TOOLS
Machine	Power in Watts	Starting Coefficient
Chain Saw	1400-1800	2
Hedge Trimmer	400-800	2
Lawn Mower	300-1600	2
Shredder	700-2500	2
String Trimmer	200-600	2
OTHER
Machine	Power in Watts	Starting Coefficient
Air-conditioner	500-2500	3+
Heating	1000-1800	1

2 Year Warranty

We at Warrior understand the importance of warranty for service & repair, we are now offering a standard 2 Year (Warrior Diesel Generators) without the need for registering your purchase. We still have the option for product registration for customer who still would like to use the website and to keep in touch with ourselves.

Please view the limitations below and read the full T&C’s about the warranty offered on a particular product.

All we require is the either a copy of the original proof of purchase or an invoice supplied from retailer at the time of purchase to enable the claim to be raised. Please keep your proof of purchase safe for the duration of your terms, in the unfortunate event you need our technical support we will ask for this to be provided on each claim, NO proof of purchase any warranty claim will be delayed or rejected.

Repair / Replacement Warranty

Warrior branded diesel generators warrants to the original purchaser up to 2 Years for domestic usage that the mechanical and electrical components will be free of defects in material and workmanship for a period of Year One (1) [Parts and Labour] Year Two (2) [Parts Only] from the original date of purchase or 1000 hours which ever comes first.

Industrial & Commercial Use One Year (1) [Parts and Labour] or 500 hours which ever comes first.

Transportation charges on any product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.

Warranty Exclusions

This warranty DOES NOT cover the following:

Normal Wear

Your product needs periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts or labour if your product is deemed to have been misused, neglected, involved in an accident, abused, overloaded beyond the generator’s limits, modified, installed improperly or connected incorrectly to any electrical component or system. Normal maintenance is not covered by this warranty.

Other Exclusions

This warranty excludes:

• cosmetic defects such as paint, decals, etc.,
• worn parts including piston & rings, spark plugs, filters
• accessory parts including wheels & recoil assemblies
• failures due to acts of God and other force majeure events beyond the manufacturer’s control
• problems caused by parts that are not original Warrior Power Equipment parts
• alteration or modification(s) made by any party other than the manufacturer including exhaust extension and filtration systems.
• all hoses plastic or rubber, reducing valves and regulators
• any third party electrical equipment

12v Battery

• All batteries supplied Over 1 Year Old.

Suitable Transfer Switch

Any MTS (Manual Transfer) & ATS (Automatic Transfer) systems other that ones supplied by ourselves under WARRIOR or Warrior will not be considered suitable and will invalidate all warranties given. Please contact us direct before installing any Transfer system.

Limits of Implied Warranty and Consequential Damage

Winch Solutions Ltd (CG) disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim costs by anyone using this product.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from country to country. Your country may also have other rights you may be entitled to that are not listed within this warranty.
